ANNKE EL200 1080p 8 Channel 1 Camera Wired Security System - ANNKE Store

EL200 - 1080p 8 Channel Outdoor Wired Security CCTV System with 1 Camera, 3.6 MM Lens, Smart DVR with Human & Vehicle Detection, 66 ft Infrared Night Vision, 4-in-1 Output Signal, IP67

EL200 - 1080p 8 Channel Outdoor Wired Security CCTV System with 1 Camera, 3.6 MM Lens, Smart DVR with Human & Vehicle Detection, 66 ft Infrared Night Vision, 4-in-1 Output Signal, IP67

101.99 AUD

122.99 AUD

SKU: DW81KD+C51BY*1

Appearance
HDD Capacity
Note: NC400 are now on 35% off DOTW sale with code DOTW02.

Secure Checkout With:

  • Tags: 1 , 8CH DVR , Bullet , EXIR Night Vision , Turret

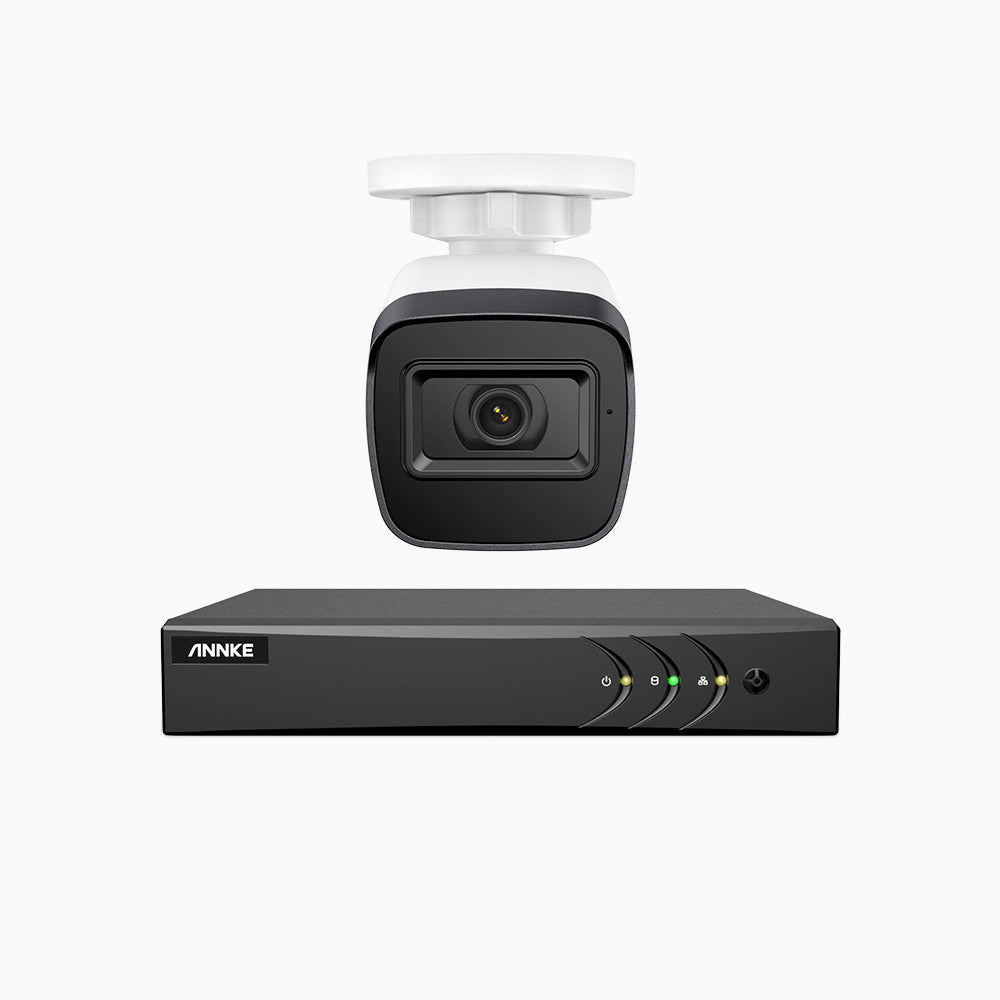

    ANNKE EL200

    Peace of Mind with Smart & Stable
    Wired Security System

  • 8CH

    DVR
    Max. 8 Cams

  • 1 Cam

    1080p Full HD
    Cover Every Angle

  • 66 ft

    EXIR Night Vision
    View Clearly at Night

  • 4-in-1

    Switchable Signals
    Widely Compatible

  • Capture Every Detail with 1080p Full HD Quality

    Benefit from true 1080p HD video quality that ensures clarity and sharpness in every frame, allowing you to identify more details effortlessly. 3.6 mm fixed lens provides a wide viewing angle, guaranteeing an expansive horizontal field of view (FOV) of 76.9°. No intruder or suspicious activity will escape its watchful eye.

    Say Hello to Unparalleled Night-Time Imaging

    Never again will you have to worry about blurry or obscured footage in low-light conditions. With its advanced infrared (IR) technology, this cutting-edge camera can illuminate objects and subjects up to a remarkable 20 meters away, ensuring every detail is captured vividly, regardless of how dark the surroundings may be.

    DNR & WDR - Never Miss A Crystal Moment

    Experience crystal-clear images and videos with our 2D DNR (Digital Noise Reduction) and Digital WDR technology. It can balance the contrast, capturing every detail in both light and shadow to say goodbye to grainy and pixelated footage that hinders effective surveillance.

    4-in-1 HD TVI/CVI/AHD/CVBS

    With the 4-in-1 capability, this camera supports multiple video formats, including HD TVI, CVI, AHD, and CVBS. This means you can seamlessly integrate it into your existing security system, regardless of the DVR or recorder you currently use. This feature alone eliminates the hassle and expense of having to replace your entire surveillance infrastructure.

    Easy Installation & Angle Adjustment

    The camera can be installed easily, with no need for an additional adaptor box. The flexible cardan axis bracket enables you to adjust the camera's pointing direction and the field of view easily & effortlessly.

    24/7 Recording Even Without Internet

    This DVR system is capable of running 24/7 without a break and can be used without being connected to the Internet. It means that the data can only be accessed directly from the DVR. For remote access & playback, push notifications & other smart features, network is required.

    IP67 Waterproof, Even in Harsh Conditions

    The security system is built to endure extreme weather conditions, withstanding temperatures as low as -40°C (-40°F) and as high as 60°C (140°F). Rest assured that rain, snow, sleet, or scorching heat won't compromise its performance, making it perfect for both indoor and outdoor use.

  • Plastic

    Rugged Housing

  • -40 °F | -40 °C

    Cold Rating

  • 140 °F | 60 °C

    Hot Rating

  • IP67

    Water Rating

  • Specification

    Download El200 System Specification

    What's in the Box
  • 1 X DVR
  • 1 X Cameras
  • 1 X 60ft BNC Cables
  • 2 X Power Adapter
  • 1 X Splitter Cable
  • 1 X Mouse
  • 1 X Short RJ45 Cable
  • 1 X 1.8M HDMI Cable
  • 2 X Mounting Screw Bags
  • 1 X Warning Sticker
  • 1 X User Manual

  • Camera
    Image Sensor2MP CMOS Image Sensor Video Resolution1920 (H) X 1080 (V)
    Signal SystemPAL/NTSC Frame RatePAL: 1080p@25 fps NTSC: 1080p@30 fps
    Lens3.6 mm Min. IlluminationColor: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on
    Angle of Viewhorizontal FOV: 76.9°, vertical FOV: 40.6°, Number of Infrared LEDs1
    Night Vision DistanceUp to 100 ft/30 m DNR2D DNR
    Wide Dynamic RangeDWDR IR-Cut FilterYes
    Video OutputHD BNC X1
    Image Sensor2MP CMOS Image Sensor
    Signal SystemPAL/NTSC
    Lens3.6 mm
    Angle of Viewhorizontal FOV: 76.9°, vertical FOV: 40.6°,
    Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic RangeDWDR
    Video OutputHD BNC X1
    Video Resolution 1920 (H) X 1080 (V)
    Frame Rate PAL: 1080p@25 fps NTSC: 1080p@30 fps
    Min. Illumination Color: 0.02 Lux @(F1.2,AGC on); 0 Lux with IR on
    Number of Infrared LEDs 1
    DNR 2D DNR
    IR-Cut Filter Yes
    General
    HousingPlastic ColorWhite
    Operating PowerDC 12 V Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L X W X H)5.465 X 2.389 X 2.278"/138.8 X 60.9 X 57.9mm Weight0.32 lb./145 g
    HousingPlastic
    Operating PowerDC 12 V
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L X W X H)5.465 X 2.389 X 2.278"/138.8 X 60.9 X 57.9mm
    Color White
    Operating Temperature -40 °F – 140 °F/-40 °C – 60 °C
    Weatherproof Rating IP67
    Weight 0.32 lb./145 g
