FC200 System
24/7 Crystal Full Color
Images Day & Night
8CH
NVR
Support Max. 8 Cams
4 CAMS
4K UHD
Cover Every Angle
2 TB
HDD
24/7 Recording
100 FT
EXIR Night Vision
View Clearly at Night

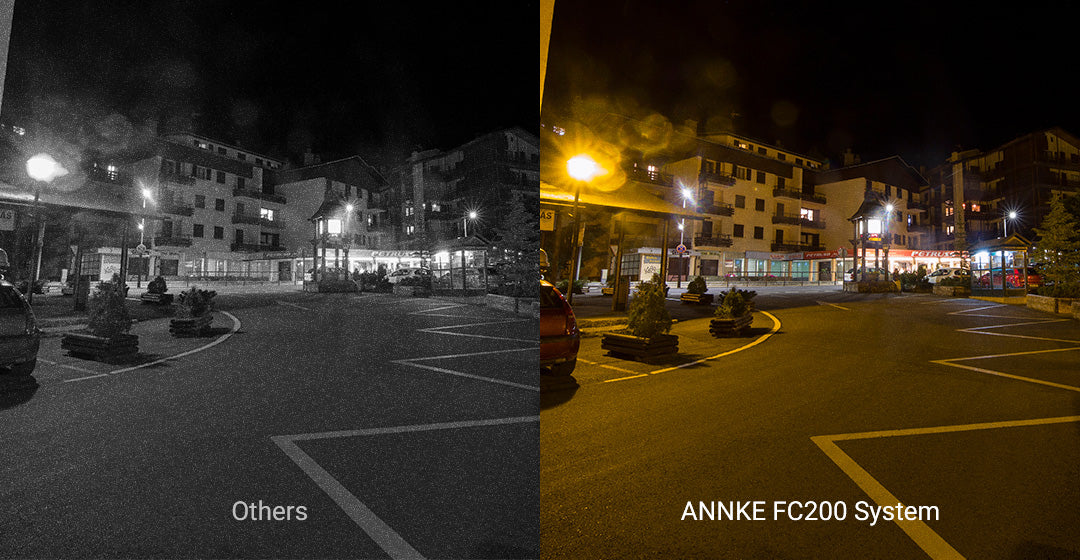

True Full Color Night Vision in 1080p Clarity
ANNKE 1080p cameras with the 2MP CMOS image sensors, produce crystal-clear colorful images even in complete darkness - see true colors at night.
ANNKE Breakthrough Full Color Night Vision Tech
Not all security cameras with IR LEDs or supplement lights are rated as full color night vision security cameras. ANNKE FC200 System’s exceptional ability to capture full color night vision images lies in the 3 powerful hardware parts: the advanced lenses, top-notch sensors & the supplement light.
Advanced Lens
4 times of light than F2.0
Friendly Supplement Light
Provides enough lighting in complete darkness
High-Performance Sensor
Improves the utilization of light & removes noise with 3D DNR
Color Night Vision with External Lighting
Equipped with the exceptional EXIR tech & smart IR, the camera delivers up to 100 ft long-range black & white night vision in 0 lux illumination conditions, which are too dark to render color images.
Advanced H.265+ Video Format
ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budgets on buying more HDDs.
Small File Sizes
Send smaller file sizes to the network video recorder without losing 5MP quality.
Long Recording Time
H.265+ coding allows for longer recording time before overwriting the older recordings.
Remote 5MP Live View
View high-quality 5MP Super HD live stream on your smart devices without all the data.
Remote Viewing on the Go
This all-in-one system is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your system remotely via your smartphones, tablets or computers.
Built to Brave Extreme Hot & Cold Climates
Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-22 °F to 140 °F), ensuring all-year-round protection wherever you live.
Metal & ABS
Rugged Housing
140 °F | 60 °C
Heat Rating
-22 °F | -30 °C
Cold Rating
IP67
Water Rating
Specification
Download FC200 Specification
What's in the Box
➀ 1X DVR with 2/4TB HDD
➁ Security Cameras (The quantity varies based on your choice)
➂ Power Adapter (The quantity varies based on your choice)
➃ 60 ft/18.3 m BNC Cables(The quantity varies based on your choice)
➄ 1X HDMI Cable
➅ 1X Network Cable
➆ 1-to-4 Power Splitter(The quantity varies based on your choice)
➇ 1X USB Mouse
➈ 1X User Manual
➉ Mounting Screw Kits
Camera
Image Sensor2MP CMOS Image Sensor |
Video Resolution1920 (H) X 1080 (V) |
Signal SystemPAL/NTSC |
Lens3.6 mm |
Frame RatePAL: 1080p@25 fps; NTSC: 1080p@30 fps |
Min. IlluminationColor: 0.02 Lux @(F1.2, AGC On) |
Angle of View82.2° |
Number of Warm Light1 |
Light DistanceUp to 100 ft/30 m |
DNRSupport |
Wide Dynamic RangeDigital WDR |
Video OutputHD BNC X1 |
Image Sensor2MP CMOS Image Sensor |
Signal SystemPAL/NTSC |
Frame RatePAL: 1080p@25 fps; NTSC: 1080p@30 fps |
Angle of View82.2° |
Light DistanceUp to 100 ft/30 m |
Wide Dynamic RangeDigital WDR |
Video Resolution 1920 (H) X 1080 (V) |
Lens 3.6 mm |
Min. Illumination Color: 0.02 Lux @(F1.2, AGC On) |
Number of Warm Light 1 |
DNR Support |
Video Output HD BNC X1 |
General
HousingPlastic |
ColorWhite |
Operating PowerDC 12 V |
Indoor/OutdoorIndoor/Outdoor |
Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C |
Dimension2.76" X 6.08"/70 X 154.5 mm |
Weatherproof RatingIP67 |
Weight0.33 lb./150 g |
HousingPlastic |
Operating PowerDC 12 V |
Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C |
Weatherproof RatingIP67 |
Color White |
Indoor/Outdoor Indoor/Outdoor |
Dimension 2.76" X 6.08"/70 X 154.5 mm |
Weight 0.33 lb./150 g |
Video & Audio
Video CompressionH.264+/H.264/H.265/H.265+ |
Video Input 8CH Analog HD/Analog + 2CH IP Cameras 16CH Analog HD/Analog + 2CH IP Cameras |
Video Output4/8CH: HDMI and VGA up to 1080p 16CH: HDMI up to 4K (3840 X 2160) and VGA up to 2K (2560 X 1440) |
Max Playback Channel4CH: 4-CH 8CH: 8-CH 16CH: 16-CH |
Audio Input/OutputSupport |
Audio Input/Output1/1 RCA |
Analog HD Recording Resolution5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12 fps |
Analog HD Playback Resolution5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF |
IPC Recording ResolutionUp to 6MP |
IPC Playback ResolutionUp to 6MP |
Video CompressionH.264+/H.264/H.265/H.265+ |
Video Output4/8CH: HDMI and VGA up to 1080p 16CH: HDMI up to 4K (3840 X 2160) and VGA up to 2K (2560 X 1440) |
Audio Input/OutputSupport |
Analog HD Recording Resolution5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12 fps |
Analog HD Playback Resolution5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF |
IPC Recording ResolutionUp to 6MP |
Video Input 8CH Analog HD/Analog + 2CH IP Cameras 16CH Analog HD/Analog + 2CH IP Cameras |
Max Playback Channel 4CH: 4-CH 8CH: 8-CH 16CH: 16-CH |
Audio Input/Output 1/1 RCA |
IPC Playback Resolution Up to 6MP |
Hard Drive
HDD1 SATA Interface |
HDD CapacityUp to 6 TB Capacity |
HDD1 SATA Interface |
HDD Capacity Up to 6 TB Capacity |
General
Network InterfaceRJ45 X1 (10/100 M) |
USBUSB 2.0 X2 |
Operating PowerDC 12 V |
Working Temperature-14 °F – 131 °F/-10 °C – 55 °C |
Dimensions (W X H X D)260 X 222 X 45 mm |
Weight (Without Hard Disk)4CH: ≤ 1 kg (2.2 lbs.) (Without HDD) 8CH: ≤ 1 kg (2.2 lbs.) (Without HDD) 16CH: ≤ 1.2 kg (2.6 lbs.) (Without HDD) |
Network InterfaceRJ45 X1 (10/100 M) |
Operating PowerDC 12 V |
Dimensions (W X H X D)260 X 222 X 45 mm |
USB USB 2.0 X2 |
Working Temperature -14 °F – 131 °F/-10 °C – 55 °C |
Weight (Without Hard Disk) 4CH: ≤ 1 kg (2.2 lbs.) (Without HDD) 8CH: ≤ 1 kg (2.2 lbs.) (Without HDD) 16CH: ≤ 1.2 kg (2.6 lbs.) (Without HDD) |
