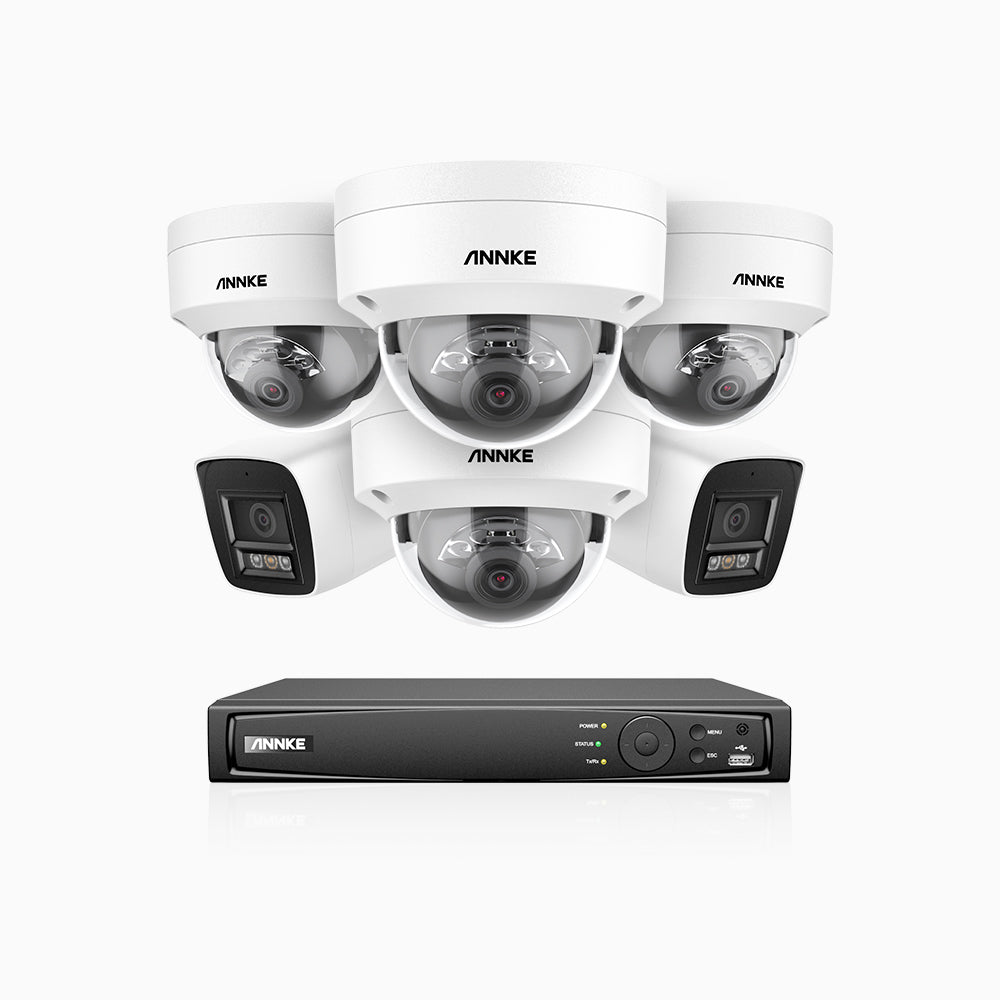

H800 - 4K 8 Channel PoE Security System with 2 Bullet & 4 Dome (IK10) Cameras, Vandal-Resistant, Human & Vehicle Detection, Built-in Mic, RTSP Supported

SKU: AA-N48PAW-I91DL02-I91DF04
824.99 AUD
1,289.99 AUD
824.99 AUD
HDD Capacity: NO HDD
Subtotal: 824.99 AUD
H800 - 4K 8 Channel PoE Security System with 2 Bullet & 4 Dome (IK10) Cameras, Vandal-Resistant, Human & Vehicle Detection, Built-in Mic, RTSP Supported

H800 - 4K 8 Channel PoE Security System with 2 Bullet & 4 Dome (IK10) Cameras, Vandal-Resistant, Human & Vehicle Detection, Built-in Mic, RTSP Supported

1,289.99 AUD 824.99 AUD

H800 - 4K 8 Channel PoE Security System with 2 Bullet & 4 Dome (IK10) Cameras, Vandal-Resistant, Human & Vehicle Detection, Built-in Mic, RTSP Supported

1,289.99 AUD 824.99 AUD
HDD Capacity: NO HDD

ANNKE H800

Once the Better, Now Even Best

Capture Clear Night Detail by Smart Dual Light

The 4 MM lens, with the high-end 1/2.4" Progressive Scan CMOS sensor adjusted by professional engineers hundreds of times, covers up to FOV 96°, and delivers best 4K Ultra HD footages in all environments.

120 dB WDR, 3D DNR, BLC & HLC image enhancement algorithms help the camera capture breathtaking 4K images at any level of brightness.

True 4K Ultra HD, View Every Detail

The 4 MM lens, with the high-end 1/2.4" Progressive Scan CMOS sensor adjusted by professional engineers hundreds of times, covers up to FOV 96°, and delivers best 4K Ultra HD footages in all environments.

120 dB WDR, 3D DNR, BLC & HLC image enhancement algorithms help the camera capture breathtaking 4K images at any level of brightness.

Newly-Upgraded Human & Vehicle Detection – Perfection in Motion

It’s a leap in smart motion detection. The advanced human & vehicle detection will only detect a person or vehicle, which helps reduce unwanted motion alerts triggered by animals, or random inanimate objects, like waving branches, falling leaves, raindrops, etc.

Noise-Cancelling Audio

The built-in noise-cancelling microphone can filter the environment noise automatically, and pick up the voice from up to 20 ft away.

Listen-in Audio: Audio recording enhances the security coverage and the ability to interpret events. Record videos with vivid sound instead of silent footages.

Mute Function: Audio record might be regulated based on your location. If the audio surveillance is not allowed or you don’t want audio record, simply mute it.

Advanced H.265+ Video Format

ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Save your budget on buying more HDDs.

A Truly Weatherproof Security Camera

Built with IP67 weatherproof rating, the IP camera remains perfectly even being immersed in 1 m of water for 30 minutes. The camera has been tested in extremely hot & cold weather (-22 °F – 140 °F/-30 °C – 60 °C) and continues to record in exceptional 4K Ultra HD, without blur and no image distortion.

  • -22 °F | -30 °C

    Cold Rating

  • Metal & ABS

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • IP67

    Water Rating

  • Small on Prices, Big on Features

  • PoE or DC Power

    Power on the camera via PoE with an NVR/PoE injector, or plug it to an outlet for power supply.

  • Local Storage

    Supports up to 256 GB TF card (not included) for local video storage without monthly cloud fees.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Motion Alerts & Remote Access

    Receive instant app pushes & email alerts when there are motion events. Control the camera remotely with smart devices.

  • Download H800 Specification

    What's in the Box (I91DL)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • I91DL Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeUp to 30 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I91DL General
    HousingMetal & Plastic ColorWhite & Black
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7") Weight0.6 lb./285 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")
    Color White & Black
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.6 lb./285 g
    What's in the Box (I91DF)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • I91DF Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Video Bitrate32 Kbps - 16 Mbps Audio Compression3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeUp to 30 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Video Bitrate32 Kbps - 16 Mbps
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Supplement Light RangeUp to 30 m
    Audio InputBuilt-in Microphone, record with audio
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP, UPnP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Audio Compression 3G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Angle of View Horizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Lens 4 mm
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I91DF General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperaturet-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67 & IK08
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84") Weight1.2 lb./550 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø121.4 mm × 97.6 mm (Ø4.78" × 3.84")
    Color White
    Hardware Reset Yes
    Operating Temperaturet -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67 & IK08
    Weight 1.2 lb./550 g
    What's in the Box (I91DM)
  • ➀ 1X/4X Security Camera(s)
  • ➁ 1X/4X Mounting Screw Bag(s)
  • ➂ 1X User Manual
  • ➃ 1X Screw Driver (For dome camera only)
  • I91DM Camera
    Image Sensor1/2.4" Progressive Scan CMOS Max resolution3840*2160(8MP)
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Substream50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Video Bitrate32 Kbps - 16 Mbps Audio CompressionG.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Audio InputBuilt-in Microphone, record with audio Lens4 mm
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96° Supplement Light TypeSmart Dual-Light, IR, White Light
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m Motion detection 2.0Supoort, include Human & Vehicle detection
    Image EnhancementBLC, HLC, 3D DNR Wide Dynamic Range120 dB WDR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP APIOpen Network Video Interface Version (Profile S, Profile T, Profile G)
    Region of Interest (ROI)1 fixed region for main stream Privacy Mask4 programmable polygon privacy masks
    General FunctionRotate mode, mirror, password protection, remote access Ethernet1 RJ45 10 M/100 M self-adaptive Ethernet port
    Image Sensor1/2.4" Progressive Scan CMOS
    Main Stream50 Hz: 12.5fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    60 Hz: 15fps@3840*2160, 20 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
    Video Bitrate32 Kbps - 16 Mbps
    Audio InputBuilt-in Microphone, record with audio
    Video CompressionMain stream: H.265+/H.265/H.264+/H.264
    Sub-stream: H.265/H.264/MJPEG
    Angle of ViewHorizontal FOV 78°, vertical FOV 38°, diagonal FOV 96°
    Supplement Light RangeIR: up to 30 m, white Light: up to 20 m
    Image EnhancementBLC, HLC, 3D DNR
    ProtocolsTCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP
    Region of Interest (ROI)1 fixed region for main stream
    General FunctionRotate mode, mirror, password protection, remote access
    Max resolution 3840*2160(8MP)
    Substream 50 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    60 Hz: 20 fps (1280 × 720, 640 × 480, 640 × 360)
    Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/ AAC-LC
    Lens 4 mm
    Min. Illumination Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
    Supplement Light Type Smart Dual-Light, IR, White Light
    Motion detection 2.0 Supoort, include Human & Vehicle detection
    Wide Dynamic Range 120 dB WDR
    API Open Network Video Interface Version (Profile S, Profile T, Profile G)
    Privacy Mask 4 programmable polygon privacy masks
    Ethernet 1 RJ45 10 M/100 M self-adaptive Ethernet port
    I91DM General
    HousingMetal & Plastic ColorWhite
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB Hardware ResetYes
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/Outdoor UseIndoor/Outdoor Interface ProtectionIP67
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5") Weight0.7 lb./340 g
    HousingMetal & Plastic
    StorageBuilt-in microSD/SDHC/SDXC Slot, up to 512 GB
    Operating PowerDC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W
    Indoor/Outdoor UseIndoor/Outdoor
    Dimension (L X W X H)Ø110 mm × 89.2 mm (Ø4.3" × 3.5")
    Color White
    Hardware Reset Yes
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Interface Protection IP67
    Weight 0.7 lb./340 g
    NVR Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input8CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel8CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 8CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 8CH
    NVR Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 6 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 6 TB Capacity for Each HDD
    NVR External Interface
    Network InterfaceRJ45 X1 (10/100M ) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100M )
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    NVR General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.5 ” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.5 ” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 131 °F/-10 °C — +55 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
