Handheld Thermal Camera for Accurate Temperature Screening

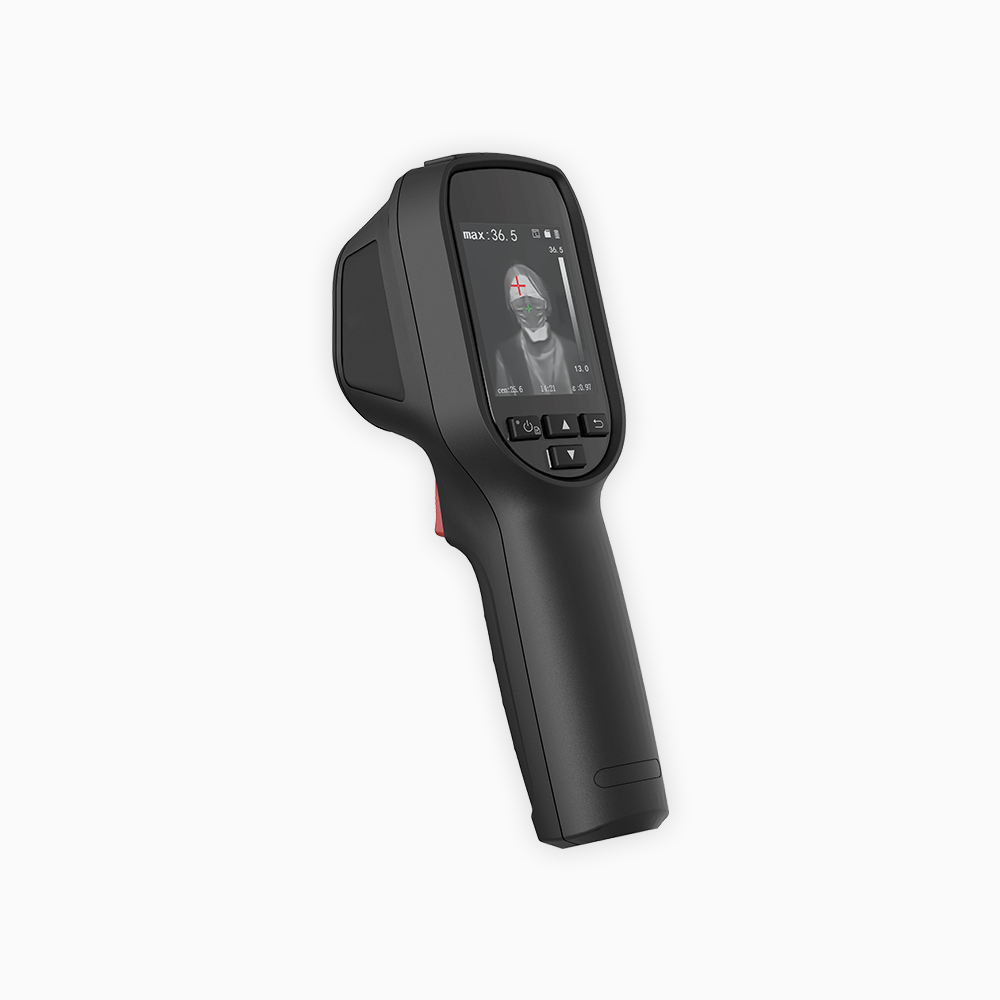

Non-Contact Handheld Thermal Camera for Body Temperature Screening

Non-Contact Handheld Thermal Camera for Body Temperature Screening

1,488.99 AUD

SKU: TWQ003

Secure Checkout With:

  • Tags:

    Fast & Accurate Temperature Screening

    The handheld thermographic camera, with the highly sensitive sensor (160 X120 resolution), detects the real-time temperature and displays it on the screen. Provide accurate temperature measurement up to ± 0.5 °C.



    2.4’’ LCD with 320 X 240 Resolution

    Users can monitor visitors’ body temperature with the thermal camera’s 2.4’’ LCD without extra monitoring devices. If the visitor’s body temperature exceeds the preset value, the display temperature will turn red to alert you instantly.



    8 GB Local Storage to Store Snapshots

    The handheld pistol-grip thermography camera comes with the built-in 8 GB SD card to save the snapshots and important data. For more storage space, you can replace the default 8 GB memory card with an up to 128 GB SD card.



    Rechargeable Battery Powered

    The rechargeable battery power thermal IR camera can keep working for up to 8 hours with one charge. Free you from frequent charging.



    Best Solution for Fever/Temperature Screening

    Install the thermal security camera solution for the office entrances, supermarkets, factories, warehouses, buildings, schools, stations, airports, etc. for preliminary temperature screening.



    Specifications



    Thermal Module

    Image Sensor

    Uncooled Focal Plane Arrays

    Max. Resolution

    160 X 120

    Pixel Pitch

    17 μm

    Response Waveband

    8 μm to 14 μm

    NETD

    < 40 mK (@ 25 °C, F#=1.0)

    Field of View

    37.2° X 50 °

    Focal Length

    3.1 mm

    IFOV (mrad)

    5.48 mrad

    Min. Focus Length

    ≥ 150 mm

    Aperture

    F 1.1

    Image Display

    Monitor

    320 X 240 Resolution 2.4’’ LCD Display

    Palettes

    Black hot, White Hot, Rainbow, Ironbow

    Thermography

    Rules

    3 thermometry points: Max. Temperature; Min. Temperature; Center Temperature

    Thermographic Range

    30°C to 45 °C

    Thermographic Accuracy

    ± 0.5 °C

    Battery

    Battery Type

    Rechargeable Lithium Battery

    Battery Operating Time

    8 Hours Continuous Running

    Storage

    Replaceable Memory Card (Default 8 GB, Support up to 128 GB Storage)


    Thermal image

    Language

    English

    General

    Power

    3.7 V DC/0.4 A

    Power Consumption

    Less than 1.2 W

    Hardware Interface

    Micro USB

    Working Temperature

    10 °C to 35 °C

    Protection level

    IP54

    Drop Test Height

    2 m (6.56 feet)

    Dimension

    196 mm X 117 mm X 59 mm (7.7 ″ X 4.6 ″ X 2.3 ″)

    Weight

    Approx. Less than 350 g (0.77 lb.)

    Accessory

    Power Adaptor, USB Cable, 8 GB Memory Card, User Manual, Disk, Wrist Strap
