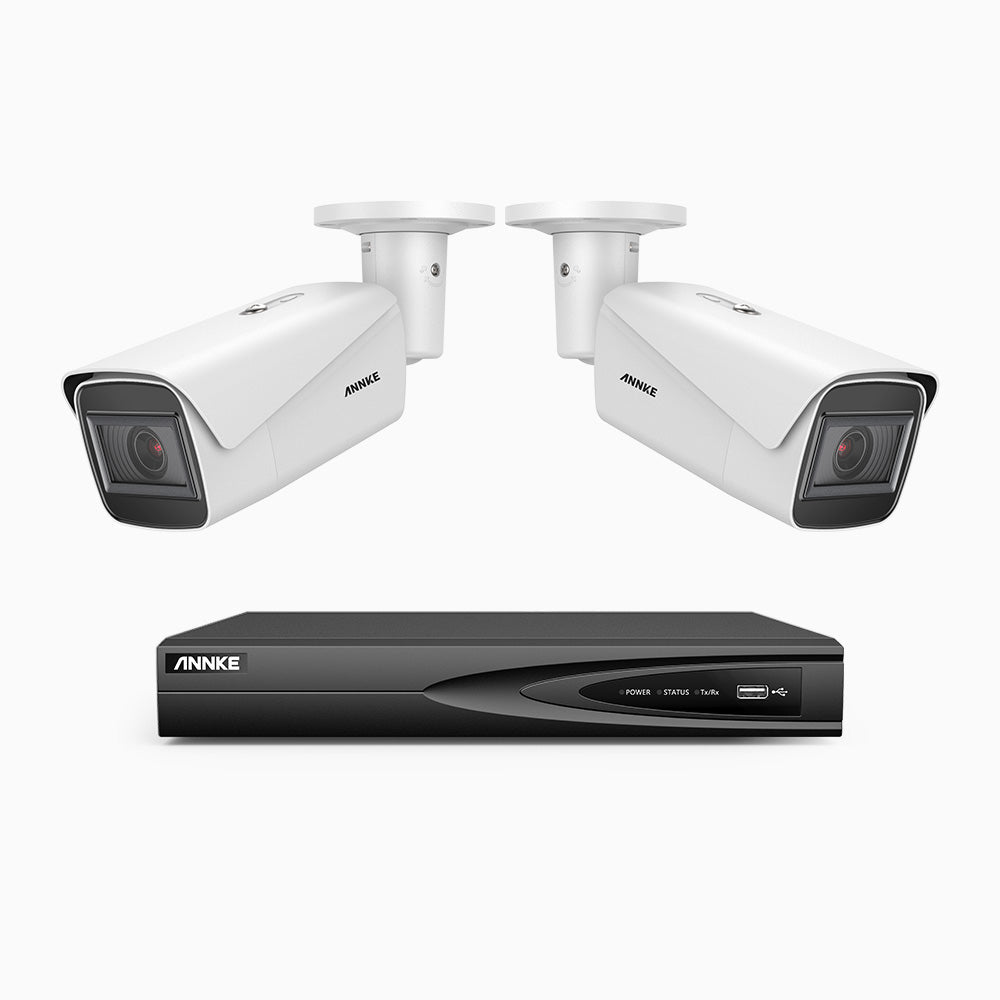

HZ800 - 4K 4 Channel PoE System with 2 pcs Optical Zoom Security Cameras, 1/2.5" Sony STARVIS Sensor, 2.8-12 mm Lens, 164 ft Color Night Vision, Face Detection & Behavior Analysis

SKU: N44PAM+I91BG*2
664.99 AUD
923.99 AUD
664.99 AUD
HDD Capacity: NO HDD
Subtotal: 664.99 AUD
HZ800 - 4K 4 Channel PoE System with 2 pcs Optical Zoom Security Cameras, 1/2.5" Sony STARVIS Sensor, 2.8-12 mm Lens, 164 ft Color Night Vision, Face Detection & Behavior Analysis

HZ800 - 4K 4 Channel PoE System with 2 pcs Optical Zoom Security Cameras, 1/2.5" Sony STARVIS Sensor, 2.8-12 mm Lens, 164 ft Color Night Vision, Face Detection & Behavior Analysis

923.99 AUD 664.99 AUD

HZ800 - 4K 4 Channel PoE System with 2 pcs Optical Zoom Security Cameras, 1/2.5" Sony STARVIS Sensor, 2.8-12 mm Lens, 164 ft Color Night Vision, Face Detection & Behavior Analysis

923.99 AUD 664.99 AUD
HDD Capacity: NO HDD

HZ800 – Best 4K 4X Optical Zoom Security System

Zoom Every Detail in
True 4K Ultra HD

Watch HZ800 in Action

  • 4CH

    NVR
    Support Max. 4 Cams

  • 4K

    Ultra HD
    Cover Every Angle

  • 164 ft

    Ture
    Color Night Vision

  • 4X

    Optical Zoom
    View Distant Objects

4X Optical Zoom with Auto Focus

The PoE IP camera, includes a unique optical zoom 2.8-12 mm motorized varifocal lens, that enables you to focus on distant & small objects in astonishing details, thanks to the 4X optical zoom. Survey a larger scene for maximum coverage.

Unrivaled 4K in All Environments

HZ800 has been tested in almost every scenario in your daily life, garages, front doors, stores, etc. both hot & cold temperatures. The cameras can still shoot stable & high-fidelity footages without glare in every testing environment.

Over 8 Million Pixels with Sony Sensor

By adopting the upgrade 1/2.5" Sony STARVIS sensor, this 4K security camera records at a pixel ratio of 3840 X 2160 (8,294,400 pixels), much clearer than other 4K cameras with traditional sensors.

Color Night Vision with External Lighting

ANNKE-designed color night vision tech, with 120 dB true WDR, 3D DNR, BLC & HLC, enables the camera to produce colorful videos over 0.018 lux illumination with the external light sources around the camera.

Equipped with the exceptional EXIR tech & smart IR, the camera delivers up to 164 ft (50 m) long-range black & white night vision in 0 lux illumination conditions, which are too dark to render color images.

True Plug & Play PoE Setup

The PoE connection is perfect, as both video & power are transferred via the same network cable, and gives you flexible installation. You can run a single Ethernet cable between the camera & NVR up to 330 ft. For longer distance, you can hook up a PoE switch (not included).

Accurate Line Crossing & Intrusion Detection

With the function of line crossing & intrusion detection, you will get motion detection alerts only when a human enters the preset virtual line or area. Get the most accurate motion alerts like never before.

Advanced H.265+ Video Format

ANNKE H.265+ coding helps the camera record longer videos and consumes less bandwidth. Quadruple H.265+/H.265/H.264+/H.264 coding allows for maximum encryptions and backward compatibility with legacy platforms.

  • Small File Sizes

    Send smaller file sizes to the network video recorder without losing 4K quality.

  • Long Recording Time

    H.265+ coding allows for longer recording time before overwriting the older recordings.

  • Remote 4K Live View

    View high-quality 4K Ultra HD live stream on your smart devices without all the data.

  • A Truly Weatherproof Security Camera

    Built with IP67 weatherproof rating, the IP camera remains perfectly even being immersed in 1 m of water for 30 minutes. The camera has been tested in extremely hot & cold weather (-22 °F – 140 °F/-30 °C – 60 °C) and continues to record in exceptional 4K Ultra HD, without blur and no image distortion.

    The camera housing, made from the same rugged aluminum metal as airplanes, can brave harsh impacts, ensuring it is strong enough to withstand outdoor conditions for years to come.

    Check IP67 Weatherproof Real Performance

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Heat Rating

  • -22 °F | -30 °C

    Cold Rating

  • IP67

    Water Rating

  • Remote Viewing on the Go

    This all-in-one system is designed for use with our innovative & intuitive ANNKE Vision App. You can quickly & easily control your system remotely via your smartphones, tablets or computers.

    More Marvelous Smart Features

  • 4 TB Local Storage

    The included 4 TB HDD provides 24/7 recording without monitoring or monthly cloud storage fees.

  • Support RTSP & ONVIF

    Integrate the system to third-party software & ONVIF 4K cameras, like Blue Iris, Synology, etc.

  • Customized Motion Areas

    Customize the specific motion zones, like garage, front door, etc. for much more relevant motion alerts.

  • Instant Motion Alerts

    Receive real-time app push notifications & email alerts when there are motion events.

  • Specification

    Download HZ800 Specification

    What's in the Box
  • ➀ 1X NVR with HDD
  • ➁ 8X Security Cameras (The quantity varies based on your choice.)
  • ➂ 3X Power Adapters
  • ➃ 60 ft/18 m Ethernet Cables 100 ft/30 m Ethernet Cables
  • ➄ 2X 1-to-4 Power Splitters
  • ➅ 1X USB Mouse
  • ➆ 8X Screw Bags
  • Camera
    Image Sensor1/2.5" Sony STARVIS IMX274 Sensor Video Resolution8MP (3840 X 2160@12.5/15 fps)
    Signal SystemPAL/NTSC Video CompressionH.265+/H.265/H.264+/H.264
    Video Bit Rate32 Kbps - 16 Mbps Signal SystemPAL/NTSC
    Lens2.8-12 mm Min. IlluminationColor: 0.018 Lux @(F1.6, AGC On)
    Angle of ViewHorizontal Field of View: 34.5° - 105° Vertical Field of View: 19° - 55°Diagonal Field of View: 40° - 125°
    Number of Infrared LEDs4 pcs Night Vision DistanceUp to 164 ft/50 m
    DNR3D DNR Wide Dynamic Range120 dB True WDR
    ONVIFSupport Behavior AnalysisLine Crossing Detection & Intrusion Detection
    Face DetectionYes IR-Cut FilterYes
    EthernetRJ45 X1(10 M/100 M)
    Image Sensor1/2.5" Sony STARVIS IMX274 Sensor
    Signal SystemPAL/NTSC
    Video Bit Rate32 Kbps - 16 Mbps
    Lens2.8-12 mm
    Angle of ViewHorizontal Field of View: 34.5° - 105°
    Number of Infrared LEDs4 pcs
    DNR3D DNR
    ONVIFSupport
    Face DetectionYes
    EthernetRJ45 X1(10 M/100 M)
    Video Resolution 8MP (3840 X 2160@12.5/15 fps)
    Video Compression H.265+/H.265/H.264+/H.264
    Signal System PAL/NTSC
    Min. Illumination Color: 0.018 Lux @(F1.6, AGC On)
    Vertical Field of View: 19° - 55° Diagonal Field of View: 40° - 125°
    Night Vision Distance Up to 164 ft/50 m
    Wide Dynamic Range 120 dB True WDR
    Behavior Analysis Line Crossing Detection & Intrusion Detection
    IR-Cut Filter Yes
    General
    HousingMetal ColorWhite
    Operating PowerPoE (802.3af) Operating Temperature-22 °F – 140 °F/-30 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension4.1" X 11.7"/105 X 297.5 mm Weight0.9 lb./410 g
    HousingMetal
    Operating PowerPoE (802.3af)
    Indoor/OutdoorIndoor/Outdoor
    Dimension4.1" X 11.7"/105 X 297.5 mm
    Color White
    Operating Temperature -22 °F – 140 °F/-30 °C – 60 °C
    Weatherproof Rating IP67
    Weight 0.9 lb./410 g
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input4CH PoE
    Video OutputHDMI up to 4K; VGA up to 1080p Audio Input/Output1/1 RCA
    Incoming Bandwidth80 M Max Recording ResolutionUp to 8MP (3840 X 2160)
    Max Playback ResolutionUp to 8MP (3840 X 2160) Max Playback Channel4CH
    Max Playback Capacity4CH @1080p; 1CH @8MP
    Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
    Video OutputHDMI up to 4K; VGA up to 1080p
    Incoming Bandwidth80 M
    Max Playback ResolutionUp to 8MP (3840 X 2160)
    Max Playback Capacity4CH @1080p; 1CH @8MP
    IP Video Input 4CH PoE
    Audio Input/Output 1/1 RCA
    Max Recording Resolution Up to 8MP (3840 X 2160)
    Max Playback Channel 4CH
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 8 TB Capacity for Each HDD
    HDD1 SATA Interface
    HDD Capacity Up to 8 TB Capacity for Each HDD
    External Interface
    Network InterfaceRJ45 X1 (10/100M ) PoE8 Ports (IEEE802.3at / af)
    USB2X USB 2.0
    Network InterfaceRJ45 X1 (10/100M )
    USB2X USB 2.0
    PoE 8 Ports (IEEE802.3at / af)
    General
    Operating PowerDC 48 V Working Temperature14 °F — 131 °F/-10 °C — +55 °C
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm Weight (Without Hard Disk)2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
    Operating PowerDC 48 V
    Dimensions (W X H X D)12.4” X 9.4” X 1.9”/315 X 240 X 48 mm
    Working Temperature 14 °F — 140 °F/-30 °C — +60 °C
    Weight (Without Hard Disk) 2.2 lbs./1 kg
    Power Consumption≤10 W (Without HDD and PoE)
    PoE: Max 25.5 W for Single Port
