NightChormaTM NCA200 takes smart security to the next level with unrivaled acme color night vision. Say goodbye to boring B&W or blurry color night vision captured by traditional cameras. Instead, you can paint dark night into 1080p colorful world even in 0.001 lux conditions without ambient lighting, or 0 lux with the supplement light.
The 2MP CMOS image sensor is capable of recording (a DVR is needed) at a real-time 25/30 fps in 1080p Full HD. This high frame rate will help capture the precise & vivid moments in your gardens, garages, studios, luxury or jewelry stores, candy houses.
The wired camera adopts 4 incredible image enhancement technologies – 130 dB WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

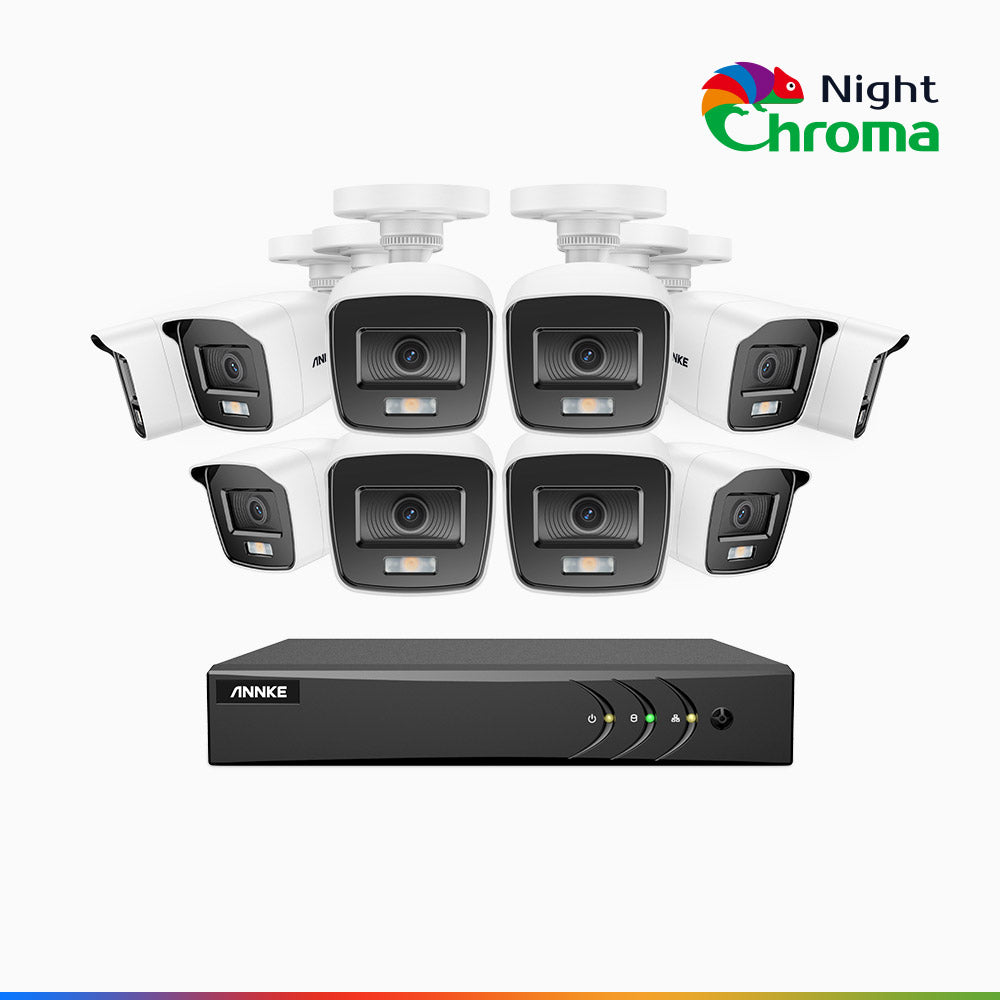

ANNKE 5MP DVR is the perfect cornerstone for your home & business security camera system. Pairing the NCA200 wired camera with this DVR, you can get remote live stream & playback, smart motion alerts and 24/7 recording (an HDD is needed) without monthly cloud storage fees.
Note: NCA200 needs a DVR for live stream & recording, and it CANNOT work standalone.
Rated as IP66, this weatherproof camera can withstand pretty much anything, regardless of heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-40 °F to 140 °F), ensuring all-year-round protection wherever you live.
Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.
Rugged Housing
Hot Rating
Cold Rating
Water Rating
Image Sensor2MP CMOS Image Sensor | Video Resolution1920 (H) X 1080 (V) |
Lens2.8 mm | Angle of View121° |
Min. Illumination0.001 Lux@(F1.0, AGC On), 0 Lux with White Light |
Signal SystemTVI: 1080p@25 fps, 1080p@30 fps
CVI: 1080p@25 fps, 1080p@30 fps AHD: 1080p@25 fps, 1080p@30 fps CVBS: PAL/NTSC |
Number of Warm Light1 | Light DistanceUp to 65 ft/20 m |
DNR3D DNR | Wide Dynamic Range130 dB WDR |
Video OutputHD BNC X1 |
Image Sensor1080p CMOS Image Sensor |
Lens2.6 mm |
Min. Illumination0.001 Lux@(F1.0, AGC On), 0 Lux with White Light |
Number of Warm Light1 |
DNR3D DNR |
Video OutputHD BNC X1 |
Video Resolution 1980 (H) X 1080 (V) |
Angle of View 121° |
Signal SystemTVI: 1080p@25 fps, 1080p@30 fps
CVI: 1080p@25 fps, 1080p@30 fps AHD: 1080p@25 fps, 1080p@30 fps CVBS: PAL/NTSC |
Light Distance Up to 65 ft/30 m |
Wide Dynamic Range 130 dB WDR |
HousingMetal | ColourWhite |
Operating PowerDC 12 V | Indoor/OutdoorIndoor/Outdoor |
Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C | Dimension162.7 mm X 70 mm X 70.2 mm (6.41" X 2.75" X 2.75") |
Weatherproof RatingIP66 | Weight0.57 lb./ 265.5 g |
HousingMetal |
Operating PowerDC 12 V |
Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C |
Weatherproof RatingIP66 |
Colour White |
Indoor/Outdoor Indoor/Outdoor |
Dimension162.7 mm X 70 mm X 70.2 mm (6.41" X 2.75" X 2.75") |
Weight 0.57 lb./ 265 g |
Video CompressionH.264+/H.264/H.265/H.265+ | Video OutputHDMI and VGA Up to 1080P |
16CH Analog HD/Analog+2CH IP |
Analog HD Recording ResolutionFor 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
Audio Input/Output1/1 RCA | Analog HD Playback Resolution5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
IPC Recording ResolutionUp to 6MP | IPC Playback ResolutionUp to 6MP |
16CH/ 16CH | ProtocolsSupport |
Video CompressionH.264+/H.264/H.265/H.265+ |
Video Input16CH Analog HD/Analog+2CH IP |
Audio Input/Output1/1 RCA |
IPC Recording ResolutionUp to 6MP |
16CH/ 16CH |
Video Output HDMI and VGA Up to 1080P |
Analog HD Recording Resolution For 5 MP stream access: 5MP Lite/3MP/1080p/720p/VGA/WD1/4CIF/CIF@12fps
For 1080p stream access: 1080p/720p@12fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) |
Analog HD Playback Resolution 5MP Lite/3 MP/1080p/720p/VGA/WD1/4CIF/CIF |
IPC Playback Resolution Up to 6MP |
Protocols Support |
HDD1 SATA interface | HDD CapacityUp to 6TB capacity |
HDD1 SATA interface |
HDD Capacity Up to 6TB capacity |
Network interfaceRJ45x1(10/100M) | Working Condition-14 °F – 131 °F /-10 °C – 55 °C |
BNC Output- | Alarm Input/Output- |
RS485- | USBUSB2.0x2 |
Operating PowerDC12V | Dimensions(W x H x D)260 × 222 × 45 mm |
Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD) |
Network interfaceRJ45x1(10/100M) |
BNC Output- |
RS485- |
Operating PowerDC12V |
Weight (without hard disk)≤ 1 kg (2.2 lb)(without HDD) |
Working Condition -14 °F – 131 °F /-10 °C – 55 °C |
Alarm Input/Output - |
USB USB2.0x2 |
Dimensions(W x H x D) 260 × 222 × 45 mm |
