ANNKE NAK500 8 Channel 8 Camera Color Night Vision Wired CCTV System - ANNKE Store

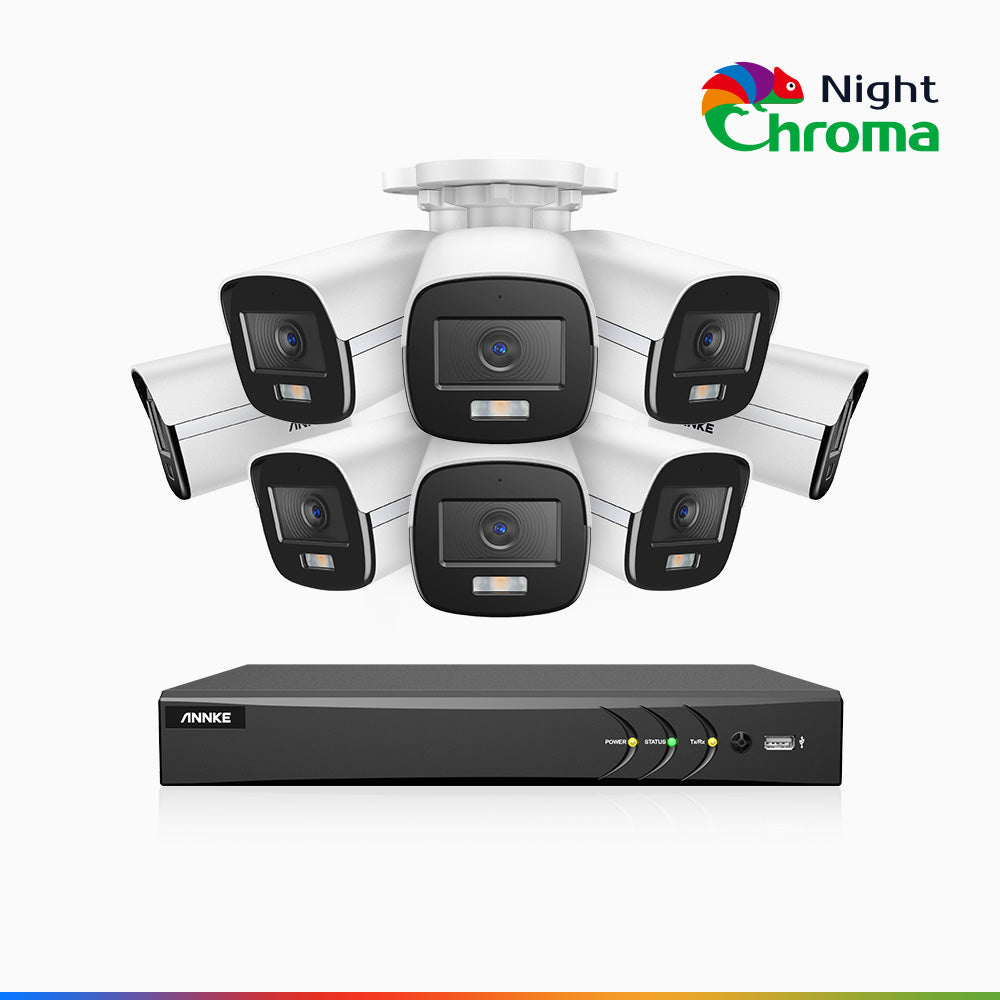

NightChromaTM NAK500 - 5MP 8 Channel 8 Camera Wired Security System, Acme Color Night Vision, f/1.0 Super Aperture, 0.0005 Lux

NightChromaTM NAK500 - 5MP 8 Channel 8 Camera Wired Security System, Acme Color Night Vision, f/1.0 Super Aperture, 0.0005 Lux

881.99 AUD

1,236.99 AUD

SKU: DT81DX+CR1CJ*8

Appearance
HDD Capacity

Secure Checkout With:

  • Tags: 100 ft - EXIR Night Vision , 5MP Super HD , 8 , Bullet , DVR 8CH , Turret

    Paint Starry Night into
    5MP Colorful World

  • 8CH

    DVR
    Support Max. 8 Cams

  • COLOR

    Night Vision
    View Colors at Night

  • 8 CAMS

    5MP Super HD
    See Further & Clearer

  • IP67

    Outdoor
    Indoor Use

  • World’s FIRST & ANNKE-ONLY
    Acme Color Night Vision

    NightChormaTM NAK500 takes smart security to the next level with unrivaled acme color night vision. Say goodbye to boring B&W or blurry color night vision captured by traditional cameras. Instead, you can paint dark night into 5MP colorful world even in 0.0005 lux conditions without ambient lighting, or 0 lux with the supplement light.

    Only security cameras with f/1.0 super aperture can capture acme color night vision. f/1.0 aperture, the largest aperture in video surveillance, collects 4X amount of lighting than f/2.0 aperture, to produce brighter images.

    That’s the best backside illumination sensor. It increases 2X amount of light sensing areas to deliver clearer footages. The high-performance ISP image processing tech helps produce high-fidelity & colorful details.

    The unique micro-size active alignment manufacturing technique allows for the most accurate focusing, bringing the adjustment accuracy to within 4 pixels, smaller than 1/30 hair diameter.

    The soft supplement light turns on automatically in 0 lux illumination to ensure the best color night vision without glare. Remove overexposed or underexposed issues & capture 4MP footages with balanced lighting.

    2K 5MP Super HD at Smooth 20 fps

    The 5MP CMOS image sensor is capable of recording (a DVR is needed) at a real-time 30 fps in 5MP Super HD, or 30 fps in 4MP. This high frame rate will help capture the precise & vivid moments in your garages, studios, luxury or jewelry stores, candy houses.

    4 Top-of-the-Line Image Enhancement Technologies

    The wired camera adopts 4 incredible image enhancement technologies – 130 dB true WDR, 3D DNR, BLC & HLC – to provide the splendid 5MP Super HD clarity. So, whether you view the live stream by day or by moonlight, you’ll get a new level of details and colors that wasn’t possible before.

    Triple & Flexible Video Recording Modes

    Your DVR can record videos continuously, during scheduled periods or when motion is detected. The recording modes can be specified for each camera, so you can customize the cameras in higher activity areas to record 24/7, while cameras in low activity areas can be set up to record motion events only.

    Industry-Leading H.265+ Video Format

    H.265+ video compression tech consumes less bandwidth & storage space than H.264, without losing 5MP Super quality. Quadruple H.265+/H.265/H.264+/H.264 video format allows for maximum encryptions and backward compatibility with legacy platforms.

  • Small File Sizes

    Send smaller file sizes to the WiFi network video recorder without losing 5MP quality.

  • Long Recording Time

    H.265+ coding allows for longer recording time before overwriting the older recordings.

  • Remote 5MP Live View

    View high-quality 5MP Super HD live stream on your smart devices without all the data.

  • Built to Brave Extreme Hot & Cold Climates

    Rated as IP67, this weatherproof camera can withstand pretty much anything, regardless heavy snowfall, torrential downpours. This camera has been tested in extreme temperatures (-40 °F to 140 °F), ensuring all-year-round protection wherever you live.

    Made from the same heavy-duty aluminum used in the construction of airplanes, the camera housing can withstand large impacts and is highly resistant to corrosion.

  • Metal

    Rugged Housing

  • 140 °F | 60 °C

    Hot Rating

  • -40 °F | -40 °C

    Cold Rating

  • IP67

    Water Rating

  • More Smart Features on This Top-Grade System

  • 4K Ultra HD DVR

    This 8CH DVR supports up to 4K Ultra HD analog security cameras to capture clearer pictures.

  • 2/4 TB Local Storage

    Save videos to the built-in 2/4 TB hard disk drive for local storage without monthly cloud storage fees.

  • Remote Access & Motion Alerts

    Get unlimited remote control and real-time app push notifications & email alerts when there are motion events.

  • 24/7 Record Without Internet

    The DVR & cameras link to each other after plug in & record videos 24/7 without Internet.

  • Specification

    Download NAK500 Specification

    Camera
    Image Sensor5MP CMOS Image Sensor Video Resolution2560 (H) X 1944 (V)
    Lens3.6 mm Angle of View80.1°
    Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light Signal SystemTVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps
    CVI: 4MP@30 fps, 4MP@25 fps
    AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps
    CVBS: PAL/NTSC
    Number of Warm Light1 Light DistanceUp to 100 ft/30 m
    DNR3D DNR Wide Dynamic Range130 dB WDR
    Video OutputHD BNC X1
    Image Sensor5MP CMOS Image Sensor
    Lens3.6 mm
    Min. Illumination0.0005 Lux@(F1.0, AGC On), 0 Lux with White Light
    Number of Warm Light1
    DNR3D DNR
    Video OutputHD BNC X1
    Video Resolution 2560 (H) X 1944 (V)
    Angle of View 80.1°
    Signal System TVI: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps, 1080p@30 fps, 1080p@25 fps
    CVI: 4MP@30 fps, 4MP@25 fps
    AHD: 5MP@20 fps, 4MP@30 fps, 4MP@25 fps
    CVBS: PAL/NTSC
    Light Distance Up to 100 ft/30 m
    Wide Dynamic Range 130 dB WDR
    General
    HousingMetal ColorWhite
    Operating PowerDC 12 V Indoor/OutdoorIndoor/Outdoor
    Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C Dimension68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")
    Weatherproof RatingIP67 Weight0.77 lb./ 350 g
    HousingMetal
    Operating PowerDC 12 V
    Operating Temperature-40 °F – 140 °F/-40 °C – 60 °C
    Weatherproof RatingIP67
    Color White
    Indoor/Outdoor Indoor/Outdoor
    Dimension 68 mm X 70 mm X 168.2 mm (2.68" X 2.76" X 6.62")
    Weight 0.77 lb./ 350 g
    Video & Audio
    Video CompressionH.264/H.264+/H.265/H.265+ Video Input8CH Analog HD/Analog + 2CH IP
    Video OutputVGA up to 1080p; HDMI up to 4K Audio Input/Output1/1 RCA
    Analog HD Recording Resolution4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF Analog HD Playback Resolution4K @8 fps/5MP @12 fps/4MP @15 fps/3MP @18 fps/
    1080p/720p/WD1/4CIF/VGA/CIF @25 fps (P)/30 fps (N)
    IP Camera Input4CH IPC Recording ResolutionUp to 6MP
    IPC Playback ResolutionUp to 6MP Max Playback Channel8CH 1080p
    Video CompressionH.264/H.264+/H.265/H.265+
    Video OutputVGA up to 1080p; HDMI up to 4K
    Analog HD Recording Resolution4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
    IP Camera Input4CH
    IPC Playback ResolutionUp to 6MP
    Video Input 8CH Analog HD/Analog + 2CH IP
    Audio Input/Output 1/1 RCA
    Analog HD Playback Resolution 4K @8 fps/5MP @12 fps/4MP @15 fps/3MP @18 fps/
    1080p/720p/WD1/4CIF/VGA/CIF @25 fps (P)/30 fps (N)
    IPC Recording Resolution Up to 6MP
    Max Playback Channel 8CH 1080p
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 8 TB Capacity
    HDD1 SATA Interface
    HDD Capacity Up to 8 TB Capacity
    DVR General
    Network InterfaceRJ45 X1(10/100 M/1,000 M) BNC Output-
    RS4850 Alarm Input/Output-
    USBUSB 2.0 X1 + USB 3.0 X1 Working Condition-14 °F – 131 °F/-10 °C – 55 °C
    Dimensions (W x H x D)315 × 242 × 45 mm Weight (Without Hard Disk)≤ 2 kg (4.4 lbs.) (Without HDD)
    Network InterfaceRJ45 X1(10/100 M/1,000 M)
    RS4850
    USBUSB 2.0 X1 + USB 3.0 X1
    Dimensions (W x H x D)315 × 242 × 45 mm
    BNC Output -
    Alarm Input/Output -
    Working Condition -14 °F – 131 °F/-10 °C – 55 °C
    Weight (Without Hard Disk) ≤ 2 kg (4.4 lbs.) (Without HDD)
