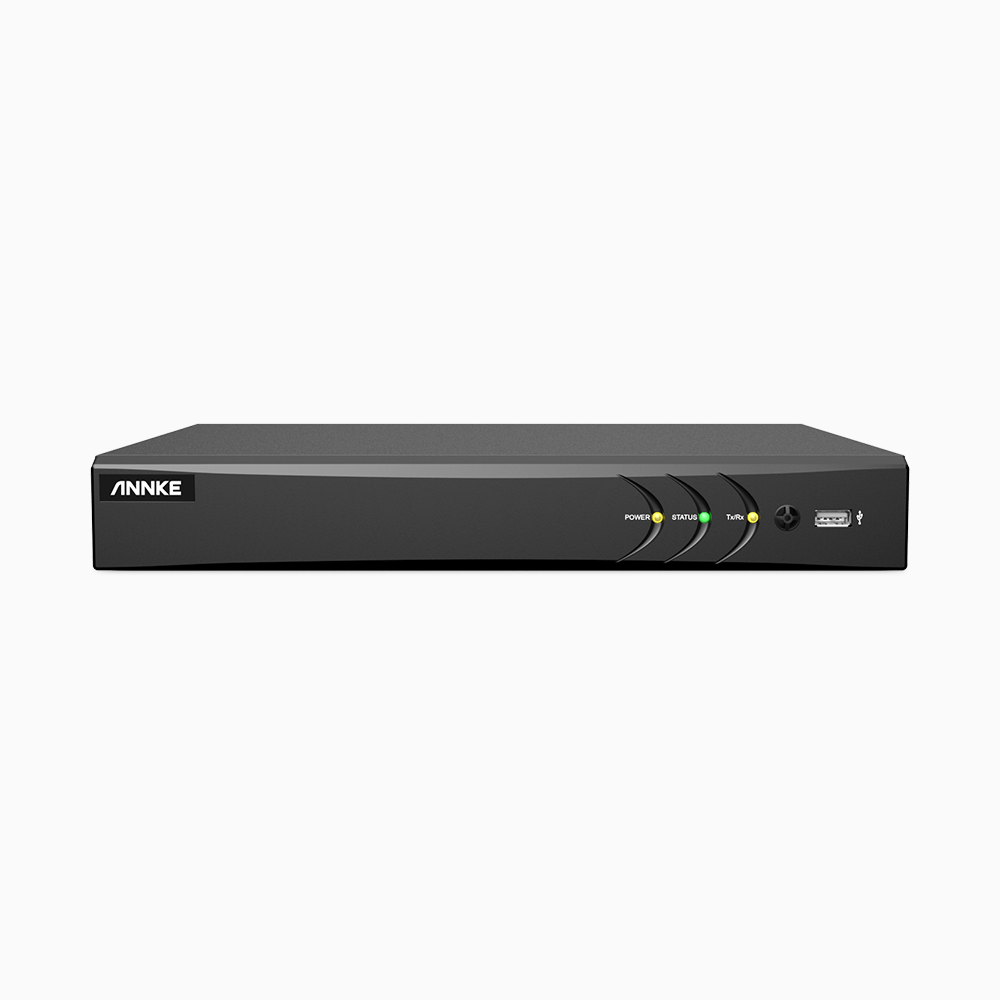

ANNKE 8 Channel 4K Hybrid 5-in-1 CCTV DVR - ANNKE Store

4K 8 Channel Hybrid 5-in-1 Digital Video Recorder, H.265+, Supports up to 8 BNC Cameras & 2 IP Cameras

4K 8 Channel Hybrid 5-in-1 Digital Video Recorder, H.265+, Supports up to 8 BNC Cameras & 2 IP Cameras

149.99 AUD

169.99 AUD

SKU: DT81DX

HDD Capacity

Secure Checkout With:

  • Tags: 4K , 8CH DVR

    Up to 4K HD Video Input for Ultra Clearness

    The DVR can be connected to 4K TVI cameras, which displays amazingly clear footage like never before. Such high resolution brings everything to life, and even the faraway license plate can be recognized easily.

    The Most Cutting-Edge H.265+ Video Compression

    This cutting-edge technology not only greatly reduces bandwidth requirements, but also substantially improves storage and transmission efficiency. In a normal environment, the H.265+ coding standard enables you to record up to 7 times longer than H.264 with the same HDD.

    Powerful 5-in-1 DVR with Strong Compatibility

    This high-end DVR supports AHD, CVBS, TVI, CVI as well as IP cameras, adding flexibility to your device connection and bringing you ease of mind. Because of its wide-range compatibility, you can take full advantage of your old cameras and add brand new cameras to it.

    Smart Motion-Triggered Alerts

    You can mark out the relevant areas for motion detection to free yourself from false alerts. Whenever motion detection is triggered, you will receive instant email alerts with snapshots and APP alarm pushes so that appropriate precautions could be taken.

    Easy Remote Access from Mobile Devices

    Consolidating your security system into your smartphone, tablet and PC can be quite simple with our free ANNKE VISION APP. Quick scan the QR-code, install it on your mobile devices and then you can watch live video anytime from anywhere.

    Save Time with Smart Search/Playback Function

    The smart search function allows you to mark out the specific area you need for playback. And the smart playback function can fast-forward or skip the still images and offer you the video with movements in your selected areas and period. While with the normal playback, you need to manually check the video with movements frame by frame.

    Smart HDD Failure Detection

    In the DVR’s settings interface, you can use the S.M.A.R.T detection function to check the HDD status regularly. With just one click, the system will automatically detect if there is any problem with the HDD, saving you the hassles of checking it manually.

    Specification

    Download ANNKE 4K DVR Specification

    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+ Video Input8CH Analog HD/Analog+2CH IP
    Video OutputVGA up to 1080P, HDMI up to 4K Audio Input/Output1/1 RCA
    Analog HD Recording Resolution4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF Analog HD Playback Resolution4K@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps
    1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    IP Camera input4CH IPC Recording ResolutionUp to 6M
    IPC Playback ResolutionUp to 6M Max Playback Channel8-ch 1080P
    Video Compression H.264+/H.264/H.265/H.265+
    Video Output VGA up to 1080P, HDMI up to 4K
    Analog HD Recording Resolution 4K/5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
    IP Camera input 4CH
    IPC Playback Resolution Up to 6M
    Video Input 8CH Analog HD/Analog+2CH IP
    Audio Input/Output 1/1 RCA
    Analog HD Playback Resolution 4K@8fps/5 MP@12fps/4 MP@15fps/3 MP@18fps
    1080p/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N)
    IPC Recording Resolution Up to 6M
    Max Playback Channel 8-ch 1080P
    Hard Drive
    HDD1 SATA interface HDD CapacityUp to 8TB capacity
    HDD 1 SATA interface
    HDD Capacity Up to 8TB capacity
    General
    Network interfaceRJ45x1(10/100M/1000M) Working Condition-14 °F – 131 °F /-10 °C – 55 °C
    BNC Output Alarm Input/Output
    RS4850 USBUSB2.0x1+1xUSB 3.0
    Dimensions(W x H x D)315 × 242 × 45 mm Weight (without hard disk)≤ 2 kg (4.4 lb) (without HDD)
    Network interface RJ45x1(10/100M/1000M)
    BNC Output
    RS485 0
    Dimensions(W x H x D) 315 × 242 × 45 mm
    Working Condition -14 °F – 131 °F /-10 °C – 55 °C
    Alarm Input/Output
    USB USB2.0x1+1xUSB 3.0
    Weight (without hard disk) ≤ 2 kg (4.4 lb) (without HDD)
