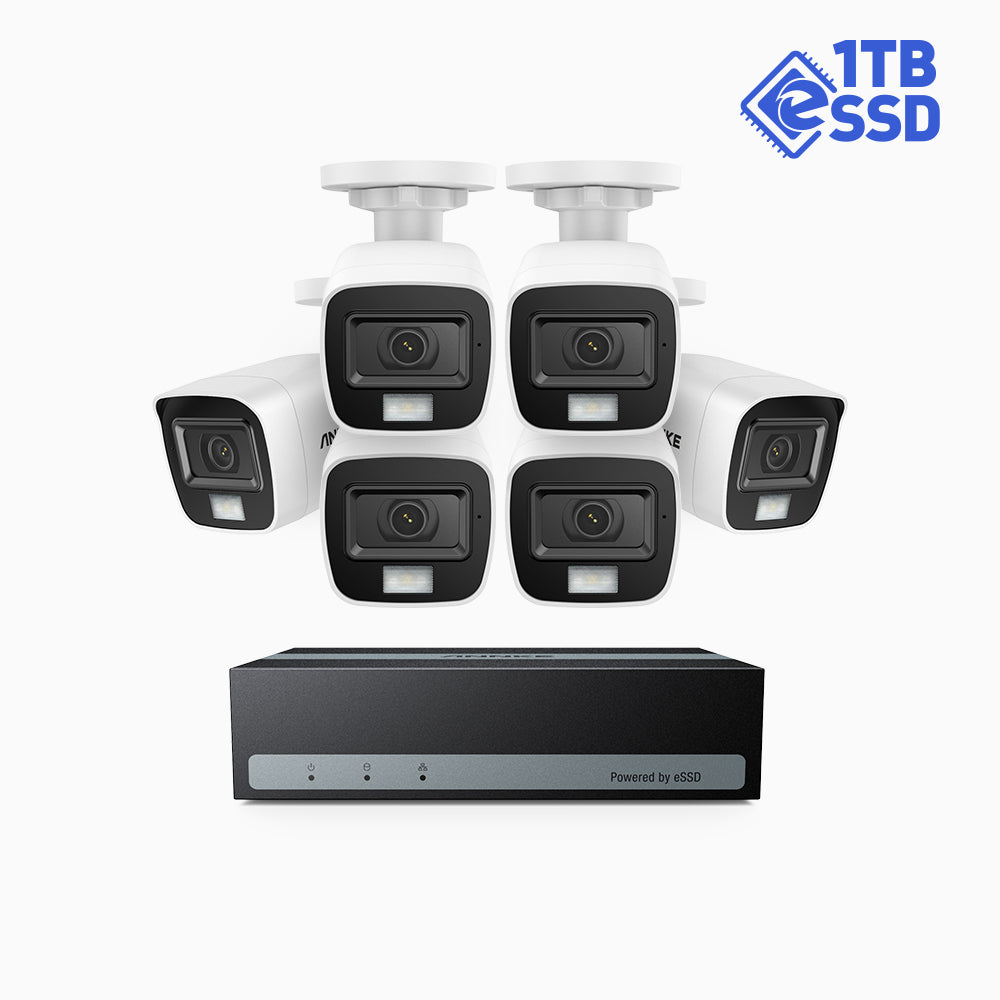

SSDK500 - 3K 8 Channel 6 Dual Light Cameras Wired Security System, Built-In 1024 GB eSSD, Color & IR Night Vision, 3072*1728 Resolution, Up To 2-Week Record, Built-In Microphone, IP67

SKU: DT81BH+CR1CV*6
404.99 AUD
494.99 AUD
404.99 AUD
Appearance: Bullet
Color: White
Subtotal: 404.99 AUD
SSDK500 - 3K 8 Channel 6 Dual Light Cameras Wired Security System, Built-In 1024 GB eSSD, Color & IR Night Vision, 3072*1728 Resolution, Up To 2-Week Record, Built-In Microphone, IP67

SSDK500 - 3K 8 Channel 6 Dual Light Cameras Wired Security System, Built-In 1024 GB eSSD, Color & IR Night Vision, 3072*1728 Resolution, Up To 2-Week Record, Built-In Microphone, IP67

494.99 AUD 404.99 AUD

SSDK500 - 3K 8 Channel 6 Dual Light Cameras Wired Security System, Built-In 1024 GB eSSD, Color & IR Night Vision, 3072*1728 Resolution, Up To 2-Week Record, Built-In Microphone, IP67

494.99 AUD 404.99 AUD
Appearance: Bullet
Color: White

SSDK500

Dual Light Mode for
Smart Night Monitoring

Enhanced Clarity with 3K Super HD

Our camera combines DWDR, AGC, BLC, and HLC technologies with 3K Super HD resolution (2960×1665@20fps) and a 2.8mm f/1.2 lens for stunning 129° FoV. Enjoy sharper, more accurate images day or night, perfectly suited for mainstream displays.

Capture Clear Night Detail by Smart Dual Light

Default smart dual light mode, the camera can clearly find the target at night by infrared light, If there is a moving target, the white light will start, infrared off, so as to obtain a clear color image. In addition, you can also choose full infrared or full white light mode. Infrared fill light is up to 25 m, up to 20 m white light distance for bright night imaging.
Note: A DVR that supports AI is required to realize the dual light function. (Perfectly works with latest version DW81KD, DW61LD, DT81DXDVR).

Powerful 4-in-1 Compatibility with Most DVRs

The camera supports TVI, AHD, CVI and CVBS output modes, which can be perfectly matched with most DVRs. Connect the security camera to a DVR for non-stop live stream and recording.

Audio Recording with Built-in Mic

The camera has a built-in microphone, allowing you to hear and record crisp, clear audio by coaxial cable, and the audio can be turned off in the menu.

Easy Installation & Angle Adjustment

The camera can be installed easily, with no need for an additional adaptor box. The flexible cardan axis bracket enables you to adjust the camera's pointing direction and the field of view easily & effortlessly.

12 VDC for Stable Power Supply

Support a wide range of voltage power supply with higher adaptability, you can easily plug camera into an outlet for the power supply.

IP67 Weatherproof – Extreme Weather Capabilities

Install this durable security camera wherever you need it most - indoors or outdoors. Rated IP67, this weatherproof camera can withstand almost any weather, whether it's snow or downpours. Super low temperature and high temperature resistance from -40 °C to 60 °C (-40 °F to 140 °F), suitable for use in most regions of the world.

  • Plastic

    Rugged Housing

  • -40 °F | -40 °C

    Cold Rating

  • 140 °F | 60 °C

    Heat Rating

  • IP67

    Water Rating

  • Download ADLK500 Specification

    What's in the Box
  • 1X Camera
  • 1X Mounting Screws Bag
  • 1X User manual
  • Camera(CR1CW)
    Image sensor3K CMOS Image sensor Video Resolution2960 (H) × 1665 (V)  (16:9)
    Signal SystemPAL/NTSC Lens2.8mm
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
    Min.IlluminationColor:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Angle of ViewHorizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
    Supplement Light type1 white Light & 2 EXIR Supplement Light RangeIR : Up to 30 m, white Light : Up to 20 m
    Wide Dynamic RangeDigital WDR AudioBuilt-in mic
    IR Cut FilterYes Video OutputBNC, switchable TVI/AHD/CVI/CVBS
    Image sensor3K CMOS Image sensor
    Signal SystemPAL/NTSC
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Min.IlluminationColor:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
    Supplement Light type1 white Light & 2 EXIR
    Wide Dynamic RangeDigital WDR
    IR Cut FilterYes
    Video Resolution 2960 (H) × 1665 (V)  (16:9)
    Lens 2.8mm
    Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
    Angle of View Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
    Supplement Light Range IR : Up to 30 m, white Light : Up to 20 m
    Audio Built-in mic
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    General(CT1GU)
    HousingPlastic ColorWhite
    Operating Power12 VDC ± 25% ConsumptionMax. 2.9 W
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C Indoor/OutdoorIndoor/Outdoor
    Weatherproof RatingMax. 2.9 W ConsumptionIP67
    Dimension (L x W x H)138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3") WeightApprox. 155 g (0.34 lb.)
    HousingPlastic
    Operating Power12 VDC ± 25%
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof RatingMax. 2.9 W
    Dimension (L x W x H)138.8 mm × 60.9 mm × 57.9 mm (5.47" × 2.4 " × 2.3")
    Color White
    Consumption Max. 2.9 W
    Indoor/Outdoor Indoor/Outdoor
    Consumption IP67
    Weight Approx. 155 g (0.34 lb.)
    Camera(CR1CV/CR1CX)
    Image sensor3K CMOS Image sensor Video Resolution2960 (H) × 1665 (V)  (16:9)
    Signal SystemPAL/NTSC Lens2.8mm
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Supplement Light ModeIR light works normally, and it switches to white light when human or vehicle are detected at night.
    Min.IlluminationColor:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR Angle of ViewHorizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
    Supplement Light type1 white Light & 2 EXIR Supplement Light RangeIR : Up to 25 m, white Light : Up to 20 m
    Wide Dynamic RangeDigital WDR AudioBuilt-in mic
    IR Cut FilterYes Video OutputBNC, switchable TVI/AHD/CVI/CVBS
    Image sensor3K CMOS Image sensor
    Signal SystemPAL/NTSC
    Frame RateTVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
    AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
    CVI: 4 MP@25 fps/30 fps
    CVBS: PAL/NTSC
    Min.IlluminationColor:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR
    Supplement Light type1 white Light & 2 EXIR
    Wide Dynamic RangeDigital WDR
    IR Cut FilterYes
    Video Resolution 2960 (H) × 1665 (V)  (16:9)
    Lens 2.8mm
    Supplement Light Mode IR light works normally, and it switches to white light when human or vehicle are detected at night.
    Angle of View Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°
    Supplement Light Range IR : Up to 25 m, white Light : Up to 20 m
    Audio Built-in mic
    Video Output BNC, switchable TVI/AHD/CVI/CVBS
    General(CR1CV/CR1CX)
    HousingMatal & Plastic ColorWhite
    Operating Power12 VDC ± 25% ConsumptionMax. 2.9 W
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C Indoor/OutdoorIndoor/Outdoor
    Weatherproof RatingIP67 Dimension (L x W x H)80 mm × Ø 85.1 mm (3.1" × Ø 3.4")
    WeightApprox. 300 g (0.66 lb.)
    HousingMatal & Plastic
    Operating Power12 VDC ± 25%
    Operating Temperature-40 °F – 140 °F /-40 °C – 60 °C
    Weatherproof RatingIP67
    WeightApprox. 300 g (0.66 lb.)
    Color White
    Consumption Max. 2.9 W
    Indoor/Outdoor Indoor/Outdoor
    Dimension (L x W x H) 80 mm × Ø 85.1 mm (3.1" × Ø 3.4")
