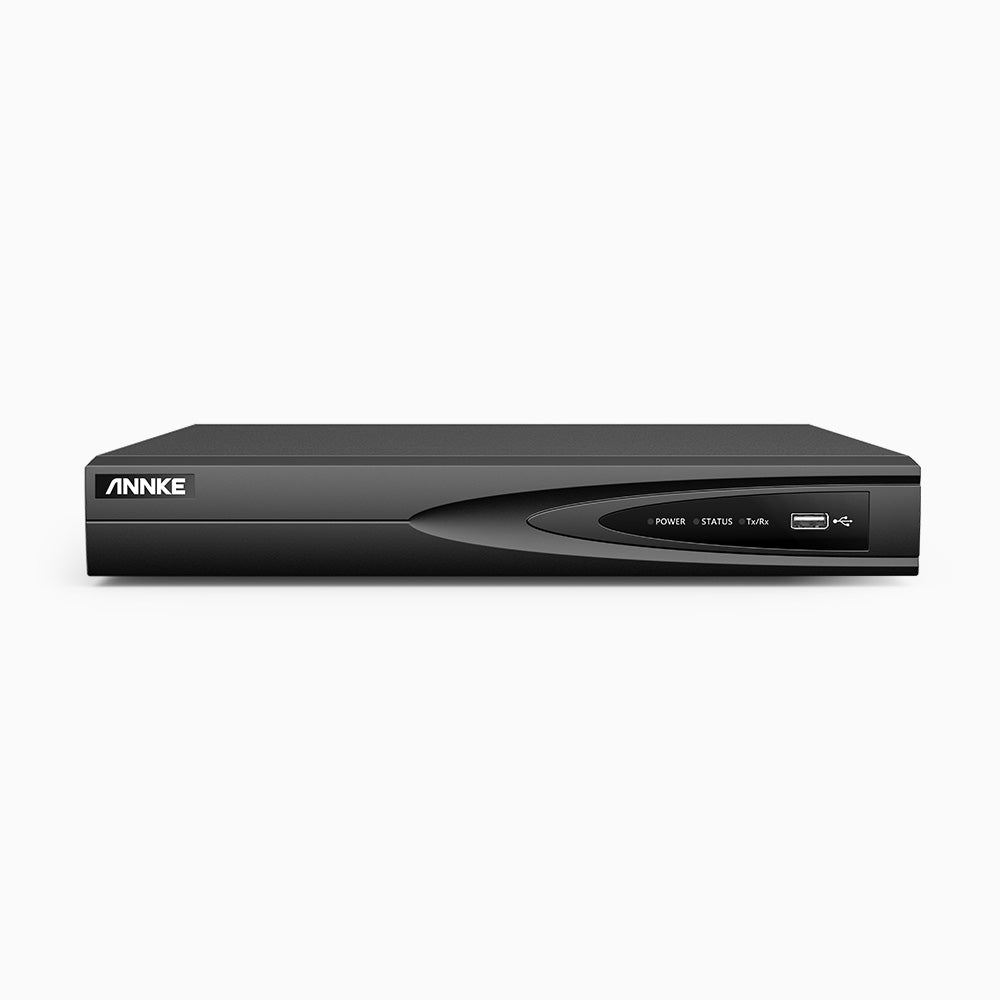

4K 4 Channel H.265+ PoE NVR, Motion Detection, RTSP Supported

SKU: AA-N44PAM000-V1
149.99 AUD
179.99 AUD
149.99 AUD
HDD Capacity: NO HDD
Subtotal: 149.99 AUD
4K 4 Channel H.265+ PoE NVR, Motion Detection, RTSP Supported

4K 4 Channel H.265+ PoE NVR, Motion Detection, RTSP Supported

179.99 AUD 149.99 AUD

4K 4 Channel H.265+ PoE NVR, Motion Detection, RTSP Supported

179.99 AUD 149.99 AUD
HDD Capacity: NO HDD

 4CH PoE IP Camera Input

This PoE NVR is plug and play, easy to configure, access and control. You can connect all your PoE IP cameras to the NVR and manage them directly through their ethernet cables for ultimate ease and convenience in a home security system.

Powerful NVR with Strong Compatibility

This NVR is connectable to PoE IP cameras of up to 4K resolution. You’re allowed to take full advantage of your cameras and have full control over them.

Connectable to IP Cameras Supporting H.265+

IP cameras supporting H.265+/H.265/H.264+/H.264 coding formats are connectable to the NVR. After adding a camera supporting H.265+, you can enable it to maximize storage space and enjoy ultra-long recording, up to 7x longer than H.264 on normal conditions.

Customizable Motion Detection

You can mark out the relevant areas for motion detection to minimize false alerts and save storage space. Besides, if you don’t want others to view certain areas’ recordings, you can block out these areas on each camera to effectively.

Smart Motion-Triggered Alerts

Whenever motion detection is triggered in your customized areas, you will receive instant email alerts with snapshots and app alarm pushes even when you’re away. Thus, you can know whatever happens in your house and take appropriate precautions on time.

Quick Remote Monitoring

Consolidating your security system into your smartphone, tablet and PC can be quite simple with our free viewing app. Download “Annke Vision” on your mobile devices, quick scan the QR-code to add the system, then you can watch live video from anywhere in the world.

4K Video Output to Display Ultra Clearness

This surveillance NVR supports up to 4K video input/output. You can add 4K cameras to this NVR, then connect it to your exquisite 4K TV or monitor to display top-of-the-line megapixel quality. Now it is easier than ever to capture all the tiny details you need like license plates, faces, packages, etc.

Save Time with Smart Search/Playback Function

The smart search function allows you to mark out the specific area you need for playback. And the smart playback function can fast-forward or skip the still images and offer you the video with movements in your selected areas and period. While with the normal playback, you need to manually check the video with movements frame by frame.



Download ANNKE NVR Specification

Video & Audio
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4 IP Video Input 4CH POE
Video OutputHDMI Up to 4K,VGA Up to 1080P Audio Input/Output1/1 RCA
Incoming bandwidth80M Max Recording ResolutionUp to 12M(4096x3072)
Max Playback ResolutionUp to 12M(4096x3072) 4CH
Max Playback Capacity4-ch@1080P, 1-ch@12MP
Video CompressionH.264+/H.264/H.265/H.265+/MPEG4
Video OutputHDMI Up to 4K,VGA Up to 1080P
Incoming bandwidth80M
Max Playback ResolutionUp to 12M(4096x3072)
Max Playback Capacity4-ch@1080P, 1-ch@12MP
IP Video Input 4CH POE
Audio Input/Output 1/1 RCA
Max Recording Resolution Up to 12M(4096x3072)
Max Playback Channel 4CH
Hard Drive
HDD CapacityUp to 8TB capacity for each HDD Network interfaceRJ45x1(10/100M)
4CH: 1 SATA interface
HDD CapacityUp to 8TB capacity for each HDD
4CH: 1 SATA interface
Network interface RJ45x1(10/100M)
General
4CH: 4 Ports(IEEE802.3at/af) Dimensions(W x H x D) 4CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm
Alarm Input/Output- RS485-
USB2x USB 2.0 Operating PowerDC48V
Power Consumption ≤10 W(without HDD and POE)
Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C Weight (without hard disk)4CH: 2.2lbs / 1KG"
POE: Max 25.5W for single port-
POE4CH: 8 Ports(IEEE802.3at/af)
Alarm Input/Output-
USB2x USB 2.0
Power Consumption
Operating Condition14 °F ~ 131 °F /-10 °C ~+55 °C
POE: Max 25.5W for single port-
Dimensions(W x H x D) 4CH: 12.4” x 9.4” x 1.9” / 315 x 240 x 48mm
RS485 -
Operating Power DC48V
≤10 W(without HDD and POE)
Weight (without hard disk) 4CH: 2.2lbs / 1KG"
