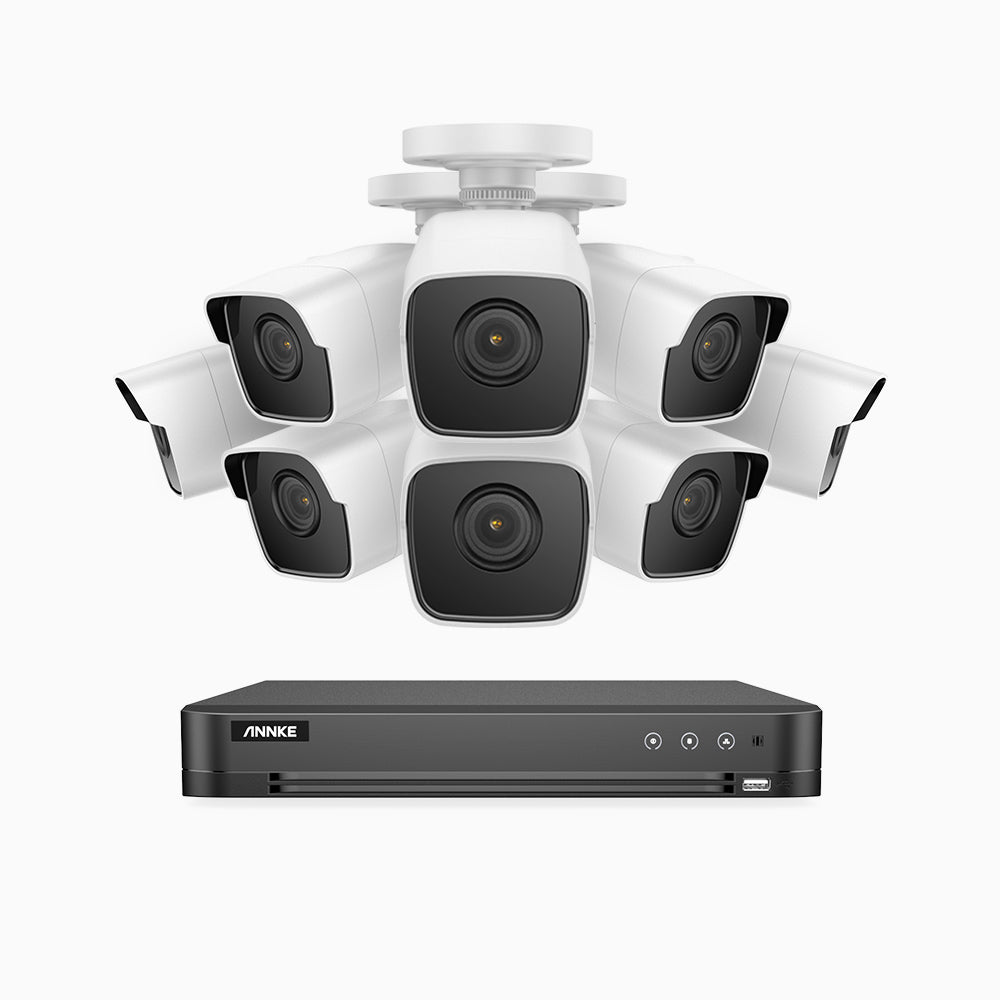

E500 – 5MP 16 Channel 8 Camera Outdoor Wired Security System, Smart DVR with Human & Vehicle Detection, 100 ft Infrared Night Vision, IP67 Weatherproof

SKU: D961BB+CR1BG*8
701.99 AUD
875.99 AUD
701.99 AUD
HDD Capacity: NO HDD
Subtotal: 701.99 AUD
E500 – 5MP 16 Channel 8 Camera Outdoor Wired Security System, Smart DVR with Human & Vehicle Detection, 100 ft Infrared Night Vision, IP67 Weatherproof

E500 – 5MP 16 Channel 8 Camera Outdoor Wired Security System, Smart DVR with Human & Vehicle Detection, 100 ft Infrared Night Vision, IP67 Weatherproof

875.99 AUD 701.99 AUD

E500 – 5MP 16 Channel 8 Camera Outdoor Wired Security System, Smart DVR with Human & Vehicle Detection, 100 ft Infrared Night Vision, IP67 Weatherproof

875.99 AUD 701.99 AUD
HDD Capacity: NO HDD

ANNKE E500

Make Your Home or Business
More Secure on a Budget

5MP Super HD Captures Details You Need

ANNKE 5MP bullet security camera presents the details you need in super clarity. It captures all the pristine colors and smooth movements, leaving nothing to the imagination.

100ft Excellent Night Vision Coverage

Built-in EXIR LEDs enable the camera to capture clear scenes even in pitch-dark area. Night vision covers up to 100 feet, guards your house day and night like a faithful solider.

Cover Every Corner of Any Given Area

2.8 mm lens provides 85.5° field of view to capture wide scene of the place you want to monitor. You can keep full control of your house with just several ANNKE cameras.

Best & Latest H.265+ Video Format

ANNKE H.265+ CCTV camera system decrease the required bitrate by up to 67% over H.265 and reduce bandwidth & storage. It’s the most efficient, stable & reliable video format in the market now, providing you with the fastest stream without latency.

IP67 Weatherproof, Brave All Extreme Weather

Encased in IP67 weatherproof housing to keep out dust, water and air, the security camera withstands almost all kinds of bad weathers and a wide range of temperature from -40 °F to 140 °F, performs well in rain, snow and sleet.

  • -40 °F | -40 °C

    Cold Rating

  • Plastic

    Rugged Housing

  • 140 °F | 60 °C

    Heat Rating

  • IP67

    Water Rating

  • Download E500 System Specification

    What's in the Box
  • ➀.1X DVR
  • ➁.5MP Security Cameras (The quantity varies based on your choice.)
  • ➂.60 ft Video & Power BNC Cables (The quantity varies based on your choice.)
  • ➃.1X 1-to-4 Splitter Cable
  • ➄.2X Power Adapter
  • ➅.1X USB Mouse
  • ➆.1X User Manual
  • ➇.1X Network Cable
  • ➈.1X HDMI Cable
  • ➉.1X Surveillance Sticker
  • Camera
    DNR2D DNR
    Image sensor5MP CMOS Image sensor Video Resolution2560 (H) × 1944 (V)
    Signal SystemPAL/NTSC Lens2.8 mm
    Frame RatePAL: 5MP@20 fps, 4MP@25 fps, 1080p@25 fps
    NTSC: 5MP@20 fps, 4MP@30 fps, 1080p@30 fps
    Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC On), 0 Lux with IR
    Angle of View85.5° Number of Infrared LEDs2 LEDs for 5MP Cam
    Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic RangeDigital WDR IR-Cut FilterYes
    Video OutputHD BNC X1
    Image sensor5MP CMOS Image sensor
    Signal SystemPAL/NTSC
    Frame RatePAL: 5MP@20 fps, 4MP@25 fps, 1080p@25 fps
    NTSC: 5MP@20 fps, 4MP@30 fps, 1080p@30 fps
    Angle of View85.5°
    Night Vision DistanceUp to 100 ft/30 m
    Wide Dynamic RangeDigital WDR
    Video OutputHD BNC X1
    Video Resolution 2560 (H) × 1944 (V)
    Lens 2.8 mm
    Min. Illumination Color: 0.01 Lux @ (F1.2, AGC On), 0 Lux with IR
    Number of Infrared LEDs2 LEDs for 5MP Cam
    DNR 2D DNR
    IR-Cut Filter Yes
    General
    HousingPlastic ColorWhite
    Operating PowerDC 12 V Operating Condition-40 °F – 140 °F/-40 °C – 60 °C
    Indoor/OutdoorIndoor/Outdoor Weatherproof RatingIP67
    Dimension (L x W x H) 5MP Cam: 2.28” x 2.40” x 6.42”/58 x 61 x 163mm Weight5MP Cam: 0.4 lbs./Approx. 180 g
    HousingPlastic
    Operating PowerDC 12 V
    Indoor/OutdoorIndoor/Outdoor
    Dimension (L x W x H)5MP Cam: 2.28” x 2.40” x 6.42”/58 x 61 x 163mm
    Color White
    Operating Condition -40 °F – 140 °F/-40 °C – 60 °C
    Weatherproof Rating IP67
    Weight5MP Cam: 0.4 lbs./Approx. 180 g
    Video & Audio
    Video CompressionH.264+/H.264/H.265/H.265+ Video Input8CH Analog HD/Analog + 2CH IP
    Video OutputVGA up to 1080p; HDMI up to 4K Audio Input/Output1/1 RCA
    Supported Camera TypesSupport HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
    Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVBS Input
    Analog HD Playback Resolution4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps
    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    IP Camera Input2CH IPC Recording ResolutionUp to 6MP
    IPC Playback ResolutionUp to 6MP Max Playback Channel8CH 1080p
    ONVIFSupport
    Video CompressionH.264+/H.264/H.265/H.265+
    Video OutputVGA up to 1080p; HDMI up to 4K
    Supported Camera TypesSupport HD TVI Input: 8MP, 5MP, 4MP, 3MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps;
    Support AHD Input: 5MP, 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVI Input: 4MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps;
    Support CVBS Input
    IP Camera Input4CH
    IPC Playback ResolutionUp to 6MP
    ONVIFSupport
    Video Input 8CH Analog HD/Analog + 2CH IP
    Audio Input/Output 1/1 RCA
    Analog HD Playback Resolution 4K@8 fps/5MP@12 fps/4MP@15 fps/3MP@18 fps
    1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
    IPC Recording Resolution Up to 6MP
    Max Playback Channel 8CH 1080p
    Hard Drive
    HDD1 SATA Interface HDD CapacityUp to 10 TB Capacity
    HDD1 SATA Interface
    HDD Capacity Up to 10 TB Capacity
    General
    Network InterfaceRJ45 X1(10/100 M/1000 M) USBUSB 2.0 X1 + USB 3.0 X 1
    Working Temperature14 °F – 131 °F/-10 °C – 55 °C Dimensions (W X H X D315 X 242 X 45 mm
    Weight (Without Hard Disk)≤ 2 kg (4.4 lbs.) (Without HDD)
    Network InterfaceRJ45 X1(10/100 M/1000 M)
    Working Temperature14 °F – 131 °F/-10 °C – 55 °C
    Weight (Without Hard Disk)≤ 2 kg (4.4 lbs.) (Without HDD)
    USB USB 2.0 X1 + USB 3.0 X 1
    Dimensions (W X H X D 315 X 242 X 45 mm
